StructuredCabling Systems.

Professional copper and fibre cabling infrastructure designed for reliable performance, clean organization, and future ready network connectivity across commercial and enterprise environments.

Request Consultation+Get a Quote

Core Services

Structured Cabling Services

Cable Installation

Cat5e through Cat8 copper and OM4/OM5/OS2 fibre installs for commercial environments.
Pathway design through cable trays, conduits, J hooks, and riser sleeves with proper bend radius.
Plenum rated (CMP) and riser rated (CMR) jackets selected to match space classification and code.
Color coded labeling with port mapping that follows the cable for the building lifetime.
Coordinated drilling, coring, and firestopping with intumescent putty for code aligned penetrations.
Drawings reviewed and pathways verified with BIM coordination before a single cable is pulled.
Clean as built documentation, photos, and digital records delivered with every installation.

Learn More

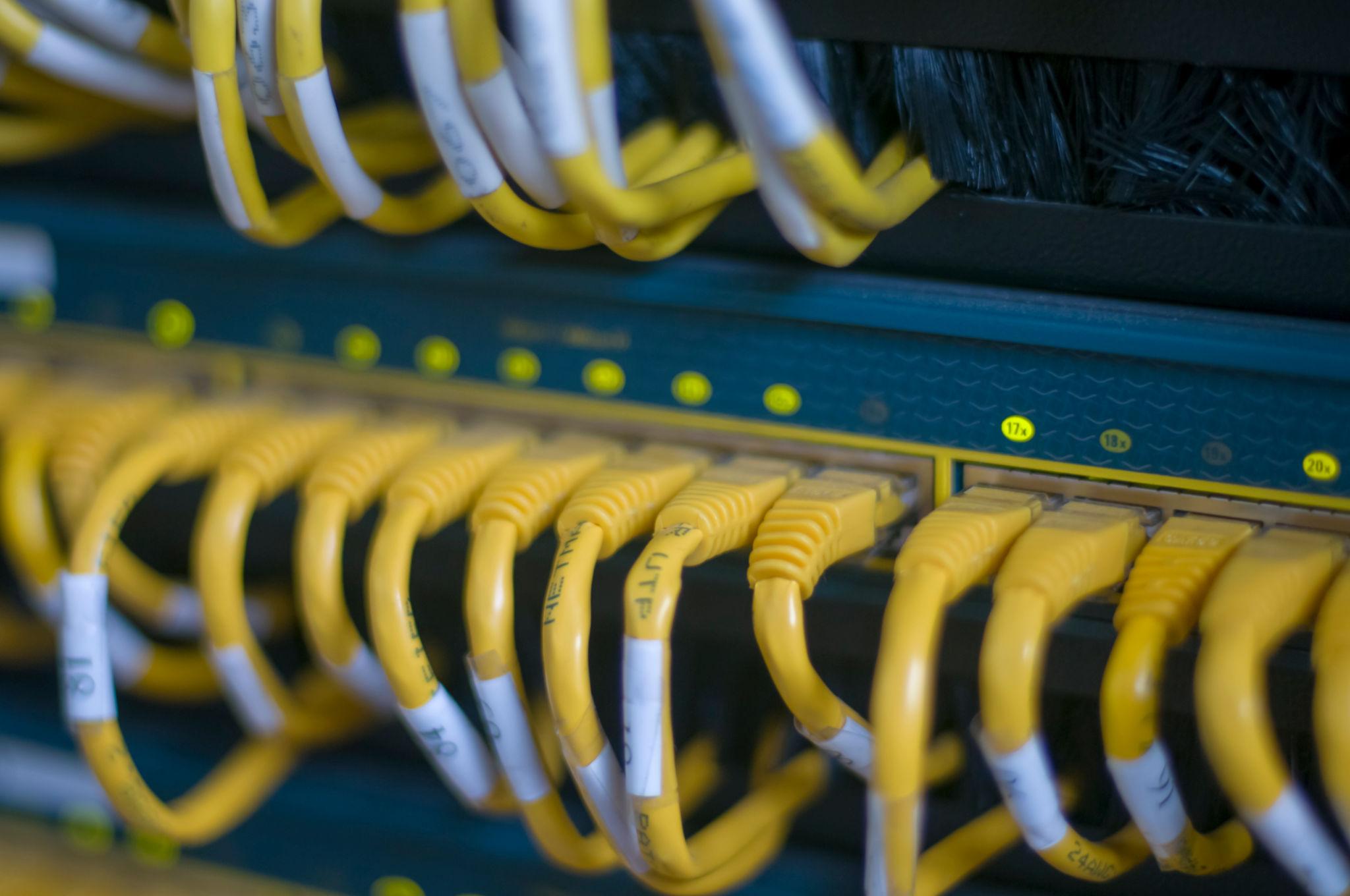

Connections & Terminations

RJ45, keystone, and patch panel terminations dressed and tested to performance specifications.
Fusion splicing with sub-0.05dB average splice loss certified by OTDR trace records.
MTP/MPO pre terminated trunk cables for high density 40G, 100G, and 400G data centre uplinks.
LC, SC, ST, and APC/UPC connector polishing and end face inspection per IEC 61300-3-35.
Cable dressing for airflow with hook and loop bundling, vertical wire managers, and slack storage.
In house staging and pre termination reducing site labour and improving consistency across runs.
Pre handover quality inspection covering polarity, port maps, and cosmetic finish.

Learn More

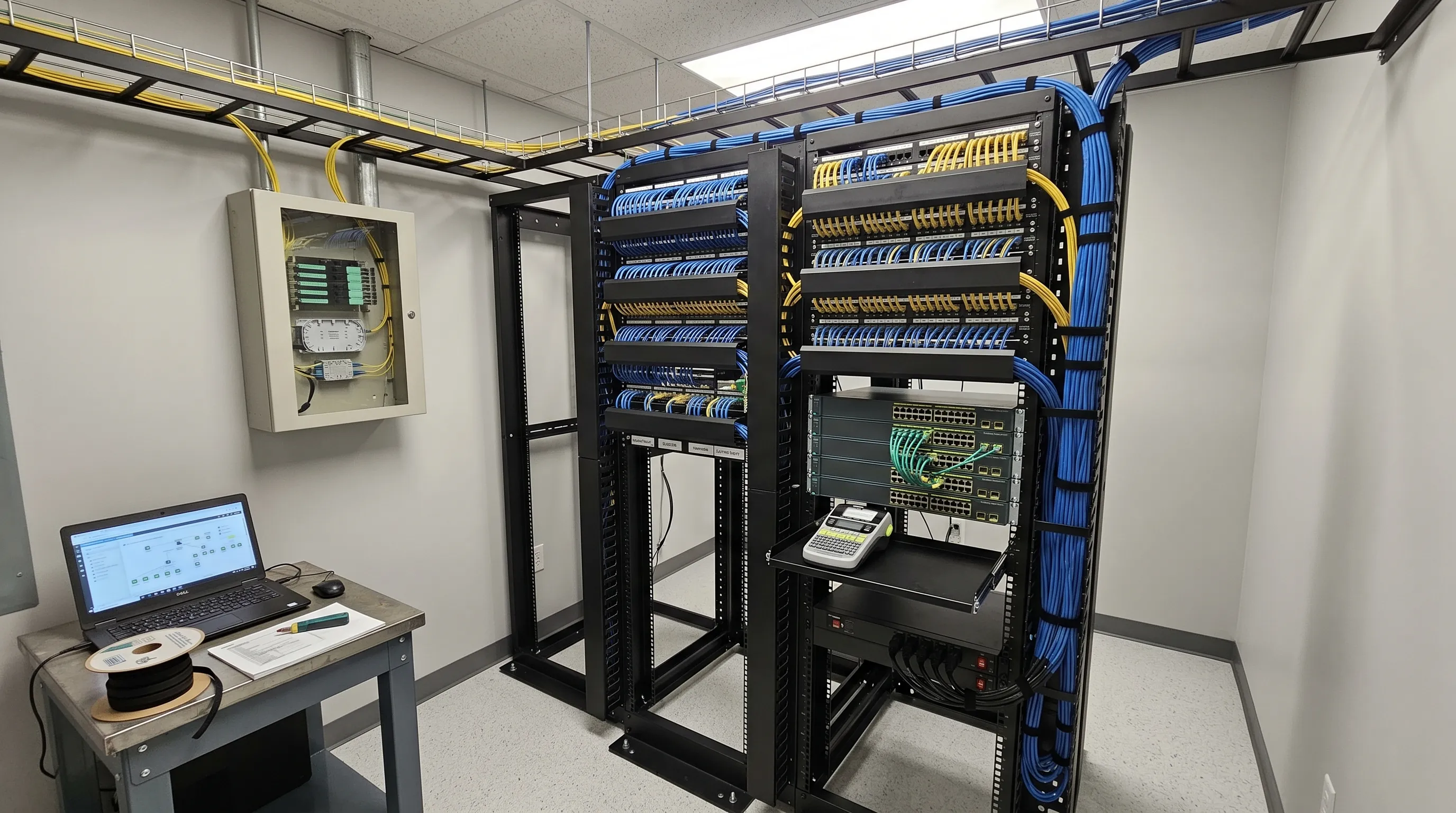

Rack Design & Cable Management

Wall mount, open frame, and floor standing rack configurations sized for current and growth capacity.
Horizontal and vertical cable management with finger ducts, D rings, and waterfalls.
Hot/cold aisle planning with blanking panels and brush grommets for airflow optimization.
Power distribution with metered PDUs, dedicated branch circuits, and UPS integration.
Grounding and bonding with TMGB/TGB busbars and #6 AWG bonding conductors.
Rack elevation drawings, port matrix, and labelled patch fields handed over with the cabinet.
Cable management designed for fast moves, adds, and changes without disturbing live links.

Learn More

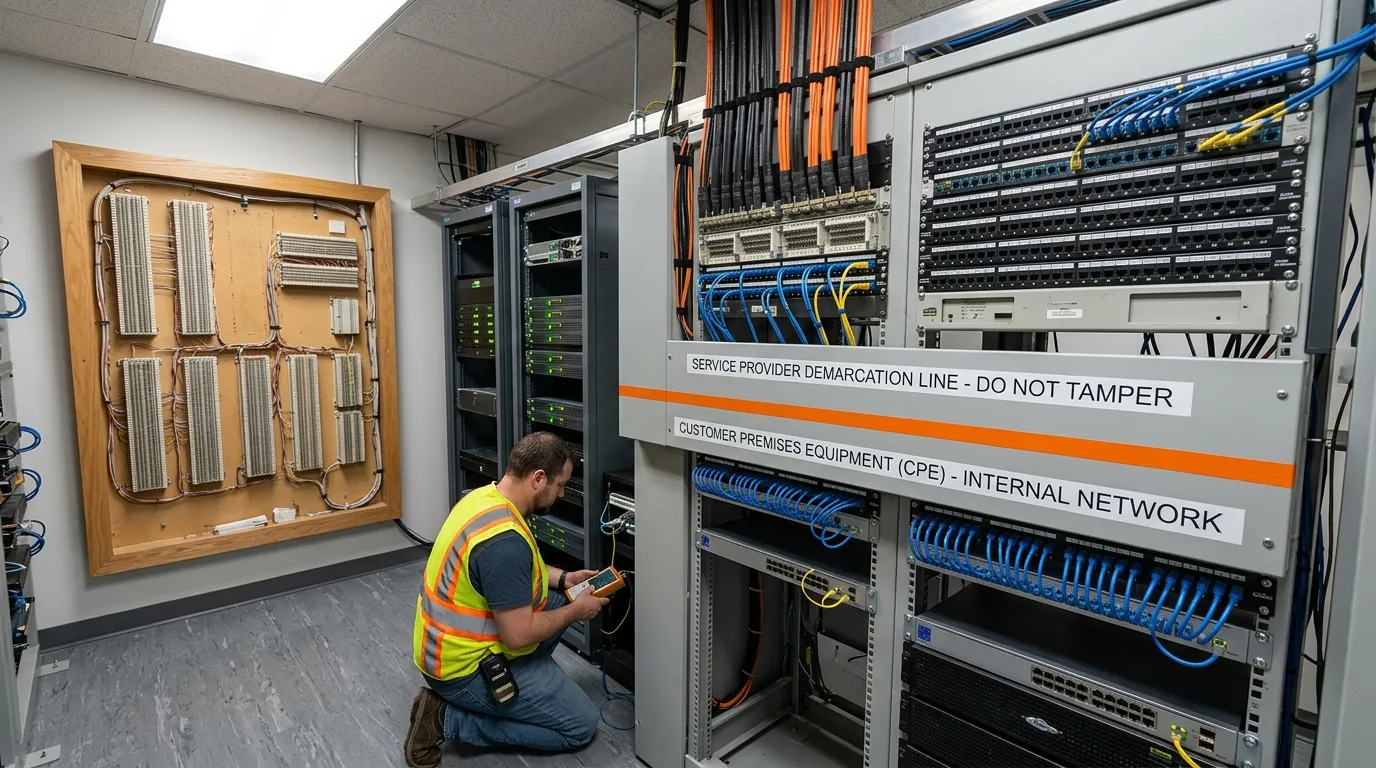

Testing & Closeout

Fluke DSX CableAnalyzer testing of every copper link with documented pass/fail results.
OTDR Tier 1 and Tier 2 fibre testing with documented trace reports and loss budgets.
Wire map, length, NEXT, return loss, and propagation delay verification on each run.
LinkWare PDF and CSV reports exported to customer CMDB or asset management tools.
Floor plans, rack elevations, and port schedules included in the closeout deliverable.
Panduit, CommScope, Leviton, and Belden components used throughout for long term reliability.
Operations training and handover walkthrough so the IT team can use day one, not file in a drawer.

Learn More

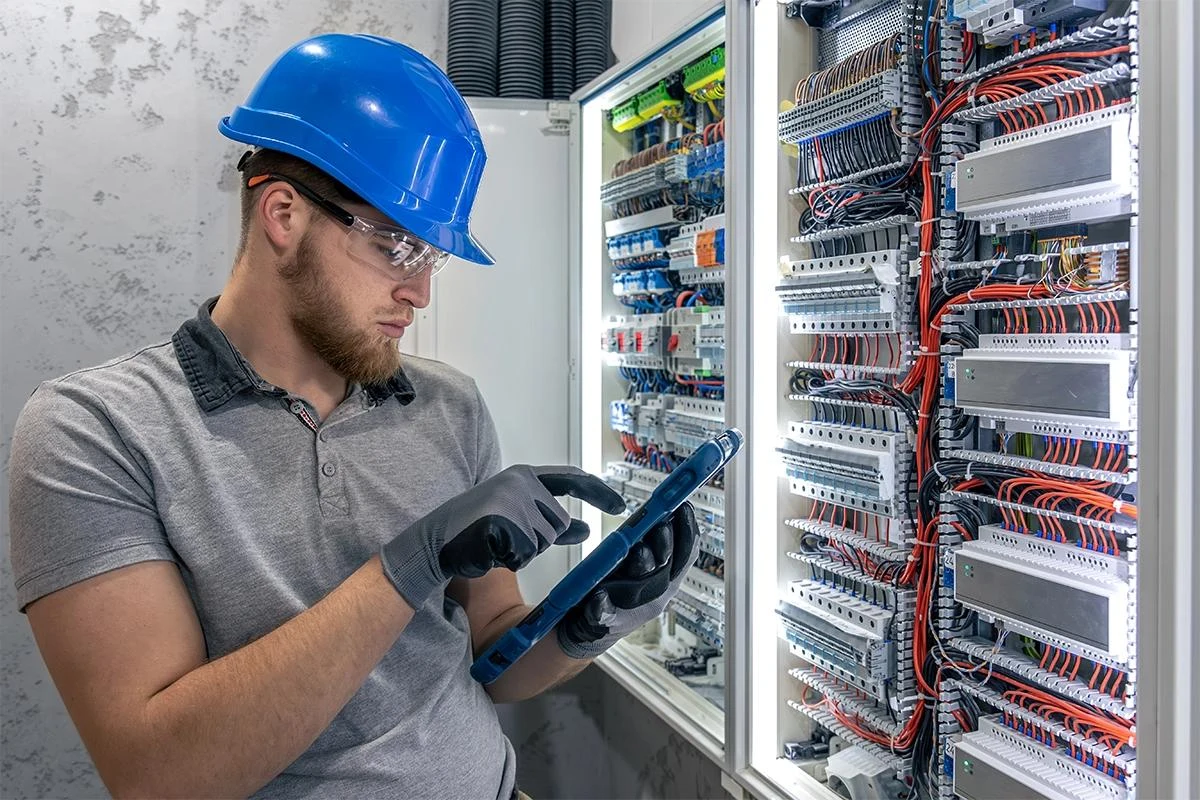

Upgrades & Maintenance

Cabinet rebuilds, re terminations, and re labeling executed during planned maintenance windows.
Fault diagnosis with OTDR, TDR, and toner sets to locate damaged links and restore service quickly.
Capacity upgrades adding fibre strands, switch ports, and PoE budgets without ripping out backbone.
Pre staged off site builds of new racks and patch panels for plug and play cutovers.
Documented rollback plans on file for every change, risk minimised, surprises eliminated.
Move add change (MAC) services for offices, suites, and tenant fit outs with same day turnaround.
Periodic infrastructure audits identifying capacity, condition, and risk areas ahead of time.

Learn More

Request a Quote →

Capabilities

Complete Structured Cabling Capabilities.

Copper Cabling Installation

Cat5e Cabling Installation
Cat6 Cabling Installation
Cat6A Cabling Installation
Cat7 / Cat8 Cabling Installation

Backbone Cabling Infrastructure

Horizontal Cabling Systems
Vertical / Riser Cabling
Inter Building Connections
Data Center Backbone Cabling

Device Cabling Solutions

CCTV / Security Device Cabling
AV (Audio Visual) Cabling
POS System Cabling
Building Automation Cabling

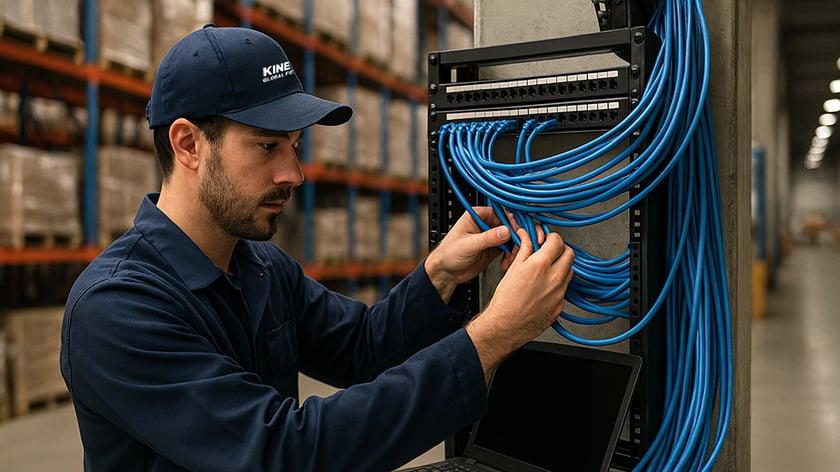

Overview

The Backbone of Every
Reliable Network.

A well-designed structured cabling system is critical for seamless data, voice, and video transmission across your organization. Our solutions support both current operations and future expansion - ensuring performance, flexibility, and easy maintenance.

We specialize in building clean, organized, and high-speed cabling infrastructures for offices, data centers, industrial facilities, and campuses.

Copper and fibre optic cabling systems
Scalable infrastructure for future expansion
Clean, organized installations with full labeling
Copper and fibre testing with documented results
Consistent installation workflow across every site
Complete as-built documentation & handover

Ready When You Are

Need structured cabling for your next Canada project?

Tell us about the project - square footage, drop count, and timeline - and we'll have a fixed-scope quote in your inbox within 48 hours.

Get a Free Quote

Frequently Asked

The questions businesses actually ask us.

Honest answers about structured cabling cost, scope, timelines, and support across Canada.

How much does structured cabling cost?

Structured cabling cost typically ranges from $150–$300 per drop for Cat6 in a standard office build, and $200–$400 per drop for Cat6A. Total project cost depends on the number of drops, cable category, building type, ceiling access, and whether the work happens during construction (cheaper) or in an occupied space (more expensive). Cable Weave provides a fixed scope quote after a free on site survey — no hourly surprises, no change order fishing.

What is the best network cabling company in Canada?

The right network cabling company is the one that surveys your site before quoting, tests every cable with documented results, hands over documented as builts, and stands behind their work. Cable Weave does all four as standard. Our team follows a consistent delivery process, and we hand over a documentation package your IT team can actually use to manage the plant for the next decade.

Should I install Cat6 or Cat6A in my office?

For a new build or major refresh, Cat6A is the right answer. It supports 10GBASE T over the full 100-metre channel and is what modern Wi Fi 6E and Wi Fi 7 access points are designed around. Cat6 is fine for short office runs where future upgrades are easy, but on a full installation the cost difference is small and the future proofing is worth it.

Fibre vs ethernet cabling — which should my office use?

For most office workstations and APs: ethernet (Cat6A copper) is the right choice — cheaper electronics, simpler termination, and it handles 10GbE up to 100 metres. For backbone runs between floors, between buildings, or any link over 90 metres: fibre optic is the right choice — unlimited bandwidth, no distance ceiling, and immune to electrical interference. Most offices use both: copper to the desk, fibre on the backbone.

Can you fix a messy server room and re cable it without downtime?

Yes. Server room cleanup and re cabling is one of our most common projects. We pre stage the new rack and patch panels off site, schedule the cutover for a maintenance window (usually a weekend or overnight), and execute with a documented rollback plan. Typical single rack rebuilds run 4–8 hours; larger environments are phased so the network stays operational throughout.

Do you handle multi site deployments across the GTA and Canada?

Yes. Multi location and multi site rollouts are a core service. One project manager owns the whole program, every location is built to the same standard, and every site is documented identically.

How long does structured cabling installation take?

A typical 30-drop office fit out takes 3–5 working days from cable pull to documented hand over. A 100-drop multi floor install runs 2–3 weeks. We give you a day by day schedule at the quote stage.

Do you stand behind your cabling work?

Yes — projects are delivered with documented closeout records and long term support expectations aligned at quote stage.

What's the difference between structured cabling and regular cabling?

Structured cabling is a standards-based, documented, scalable cabling architecture. "Regular" or point-to-point cabling runs cables directly between devices without standardized termination or documentation — creating a system that's hard to expand, troubleshoot, or hand off.

Why do cabling standards matter?

Well planned cabling matters because it keeps performance consistent, makes future changes easier, and avoids difficult troubleshooting later.

How long does closeout testing take?

Per cable testing takes seconds to minutes. A full office may take a full day of testing after install. Testing generates a per port PDF report included in your handover package.

Can you upgrade existing structured cabling to higher performance?

Yes. Cat5e to Cat6A upgrades, fibre backbone extensions, and IDF rebuilds are common projects. We test what's there, identify what stays, and quote only what needs to change.

Do you handle fibre and copper together?

Yes. Most structured cabling projects include both: copper horizontal + fibre backbone. Cat6A copper to the workstations and APs, OS2 single-mode or OM4 multi-mode fibre on the backbone between floors and buildings.

What's included in the handover package?

Per port test results (PDF), floor plan port maps, rack diagrams, labelling schedule, and as built drawings. Everything your IT team needs to manage the plant for the next decade — not just a cable that works on day one.
